"Fixing" macOS Bluetooth Headphone Audio Quality Issues with Hammerspoon

When Apple delayed the AirPods release, I was worried that they were vaporware.

Well, they weren't. I got my pair, and I bought in to looking like the San Francisco Tech Model Citizen while walking to work (listening to San Francisco Tech Model Citizen approved music, of course). And then I accidentally got another set of Bluetooth headphones, the noise-cancelling Bose QC35, great for the ambient noise in the San Francisco Tech Model Citizen's Open Office. I wasn't specifically looking for wireless headphones, but it seemed wrong to buy a brand new pair of headphones that required an adapter to work with my phone (Dear Apple: you win).

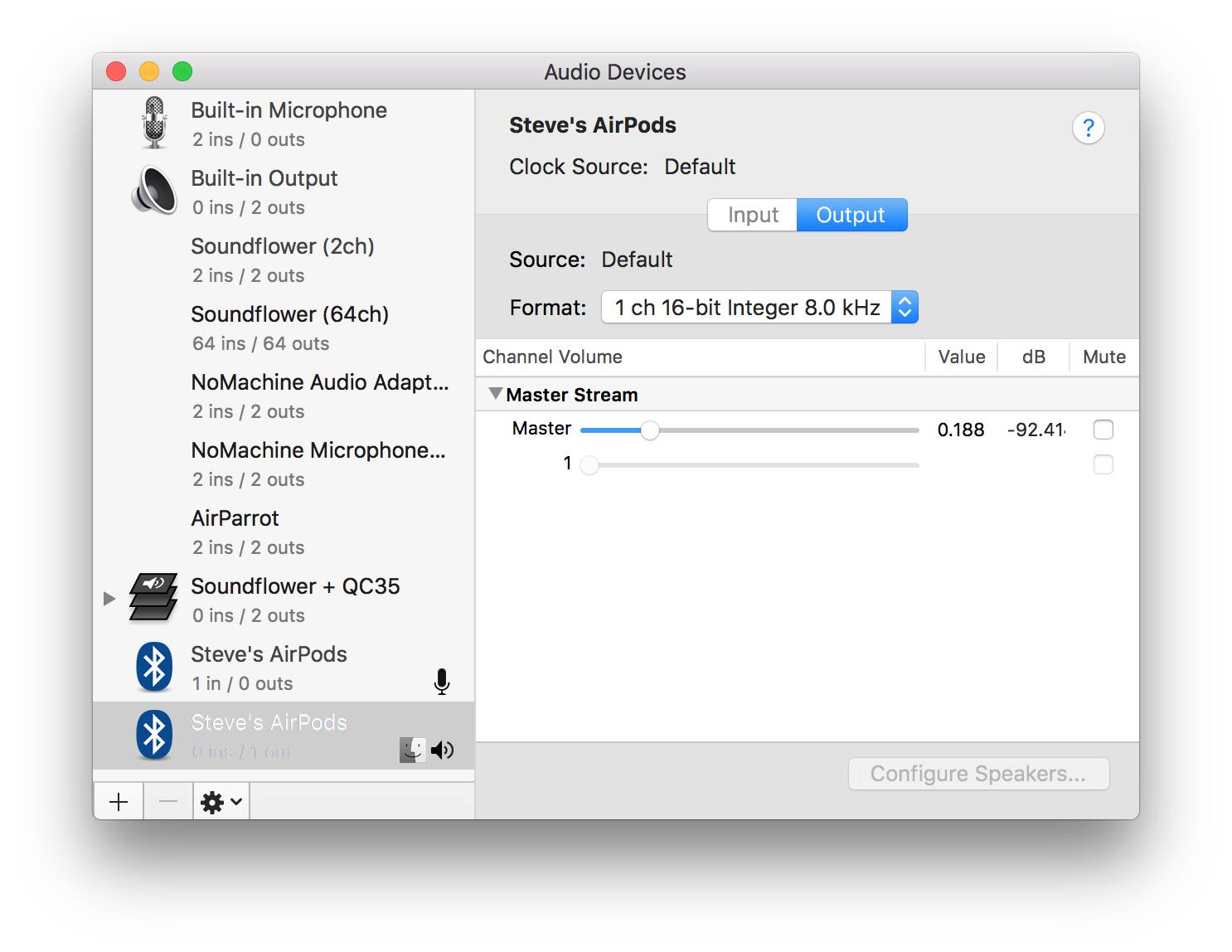

So, in the course of two and a half months I've switched completely to wireless headphones. It certainly feels like The Future but macOS isn't quite up to the task. Notably, when I connect a pair of Bluetooth headphones, the Mac usually automatically sets those headphones as both the system output device and the input device. Unfortunately, macOS then reduces the audio output samplerate to 8000 Hz, down from the usual 44100 Hz. I think this is a Bluetooth hardware limitation, but I'm not quite sure. Either way: it causes everything to sound like garbage.

There's an easy fix, though: once you've connected your AirPods or other BT Audio device, switch the input device back to the default input device (the "Internal Microphone").

That's annoying to do automatically, but there's a great tool called Hammerspoon that lets you automate lots of things like this on macOS. Here's the Hammerspoon script I whipped up (and on github):

-- Avoid automatically setting a bluetooth audio input device

lastSetDeviceTime = os.time()
lastInputDevice = nil

function audioDeviceChanged(arg)
    if arg == 'dev#' then
        lastSetDeviceTime = os.time()
    elseif arg == 'dIn ' and os.time() - lastSetDeviceTime < 2 then
        inputDevice = hs.audiodevice.defaultInputDevice()
        if inputDevice:transportType() == 'Bluetooth' then
            internalMic = lastInputDevice or hs.audiodevice.findInputByName('Built-in Microphone')
            internalMic:setDefaultInputDevice()
        end
    end
    if hs.audiodevice.defaultInputDevice():transportType() ~= 'Bluetooth' then
        lastInputDevice = hs.audiodevice.defaultInputDevice()
    end
end

hs.audiodevice.watcher.setCallback(audioDeviceChanged)
hs.audiodevice.watcher.start()

When you connect a Bluetooth audio device, this script changes the input device to the previously selected input device. If you actually want to use the microphone on the BT audio device, you can manually change the input device to the Bluetooth headphones, because the script only automatically switches away from those input devices within 2 seconds of an output device change.

I hope Apple comes up with a nicer way to manage this, but this is a nice and easy fix in the meantime.

A fast & powerful iTunes replacement with mpd, ncmpcpp, beets, and Alfred

I used Windows until 2009, and I was used to disliking iTunes. I figured that Apple was doing the minimum amount of work required to support iPods on Windows. After switching to OS X (macOS), I realized that iTunes just isn't meant to be just a music player and organizer. It does those things, but it's also a tool for syncing media to your phone, a streaming music service, and a weird social network. It's a music store, a book store, a video store, an app store, a podcast store, a music video store, an audiobook store, and whatever iTunes U is.

All of these functions get in the way of the features that I care most about and use on a daily basis: organizing and playing music. The more recent iTunes redesign is pretty (it's hard to dislike the auto-selected colors for the album view) but overall, the software is a bloated usability tire fire.

I've pieced together a fast and powerful replacement to iTunes using a bunch of open source software (mpd, ncmpcpp, and beets) and my favorite do-everything macOS assistant, Alfred. This all presupposes that you, like me, still care about maintaining a collection of digital music files. Otherwise, just get Spotify and move along.

Getting started

This guide assumes you can comfortably edit files, create folders, and run commands in Terminal.

To install the open source software I reference here, you need to first install homebrew.

Library management

It's hard to maintain a clean library of digital music. When you're ripping your own CDs you generally get accurate tag metadata, but we've all downloaded albums that are mistagged or untagged. I'm not even talking about illegal downloads: I've purchased albums from band and record label websites that have no id3 tags at all.

Beets is an open source music library management tool. It takes care of all the tag gobbledy-gook that we need. To install it, enter the following commands in Terminal:

brew install python

pip install beets

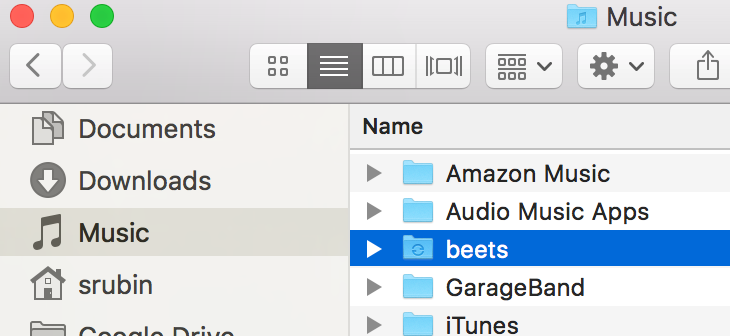

Next, create a folder where you want to keep all of your music. On my computer, I created a folder called beets in ~/Music:

We need to configure beets. Create or edit ~/.config/beets/config.yaml:

directory: ~/Music/beets                   # Where does the music live?
library: ~/Dropbox/beets/musiclibrary.blb  # Where does the beets database live?
import:
    move: yes                              # Move your files to ~/Music/beets after import
plugins: lastgenre fetchart ftintitle mpdupdate smartplaylist random embedart
embedart:
    auto: yes                              # Embed album art in the music files

To add an album to your new beets music library, run the following in Terminal:

beet import ~/Downloads/Car\ Seat\ Headrest\ -\ Teens\ Of\ Denial

Beets will match your album to an online database and correct its tags. If beets is unsure about what the album is, you'll get a prompt to verify the information. You can also add a bunch of albums all at once, e.g.:

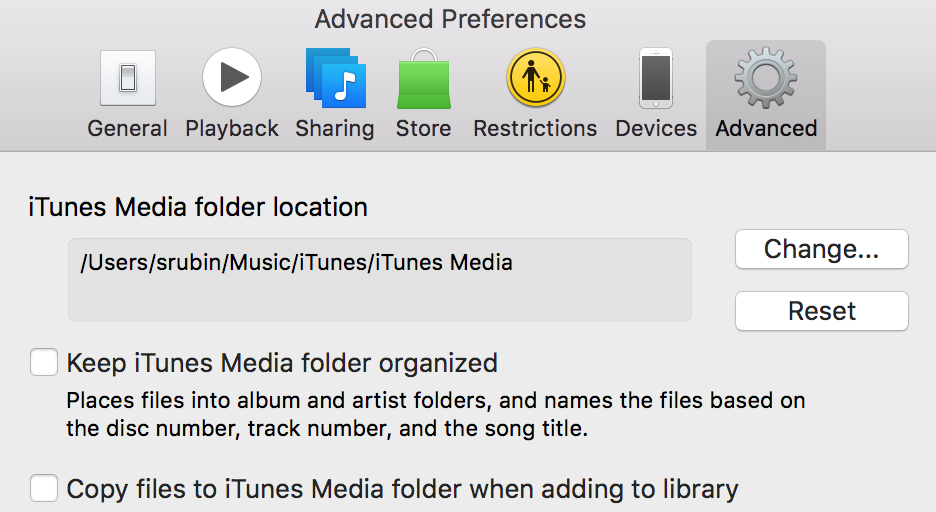

beet import ~/Music/iTunes/iTunes\ Media

Playback

Once you have a perfectly organized and tagged music library, you'll probably want some way to play it. This is where mpd comes in. Mpd is a piece of software that runs in the background and plays music. It's fast and lightweight—you're certainly not going to miss iTunes in that department.

First install mpd:

brew install mpd mpc

Homebrew will let you know that mpd successfully installed, and give you a line to copy/paste into Terminal that will automatically start mpd when you start your computer. Do that.

Then create and edit ~/.mpdconf:

music_directory "~/Music/beets"        # Beets music library folder
playlist_directory "~/.mpd/playlists"  # Where do playlists live?
db_file "~/.mpd/database"
pid_file "~/.mpd/pid"
state_file "~/.mpd/state"
sticker_file "~/.mpd/sticker.sql"
port "6600"
auto_update "yes"
audio_output {
         type "osx"
         name "My Mac Device"
         mixer_type "software"
}

Next, update your beets configuration (~/.config/beets/config.yaml) to work with mpd:

mpdupdate:
    host: localhost
    port: 6600

Make sure that mpd is updated with all your music from beets:

mpc update

The key thing to remember about mpd is that it runs and plays music in the background. There's no user interface to mpd: you need to use a client to control it. When you use a client, you're sending commands to mpd about what to play; so you can open and close clients freely without stopping playback. It's like if you could quit iTunes and still have your music playing.

You can use mpc to control playback with mpd, but you'll probably want something more user-friendly. Here's a laundry list of players you can use to control mpd. I prefer ncmpcpp, a command-line player, because I spend a lot of time in the terminal anyway. And, as you might have noticed, I want a lightning-fast client.

Install ncmpcpp:

brew install ncmpcpp

Here's my super-complex ncmpcpp configuration file (at ~/.ncmpcpp/config):

ignore_leading_the = yes  # Alphabetize "The Beatles" with "B" instead of "T"

Run ncmpcpp in the terminal:

ncmpcpp

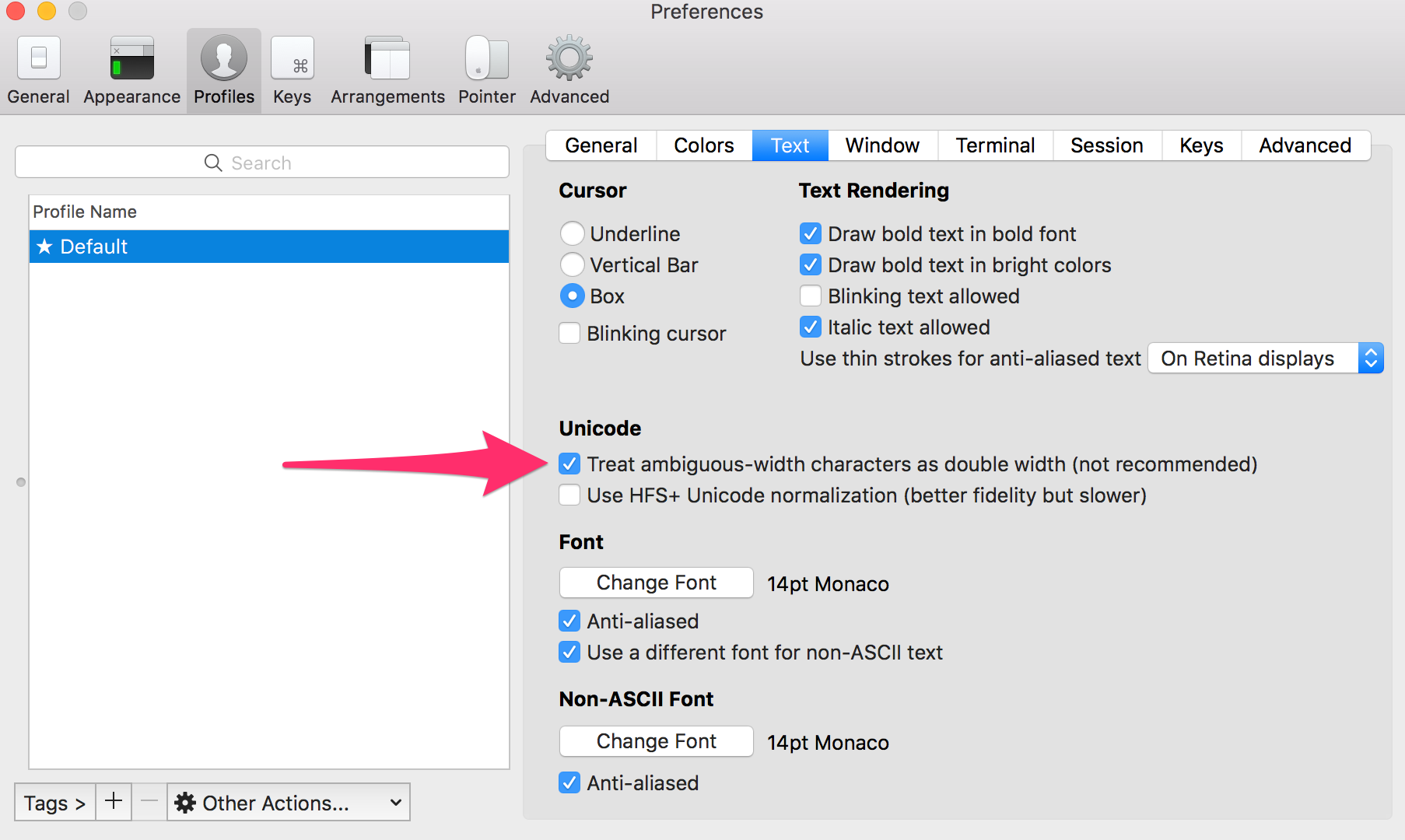

You'll see a playlist screen. (Pro tip: if you're using iTerm 2 v3 and you see a bunch of q's instead of nice lines in the UI, enable this iTerm option.) To browse your music library, hit tab. You can search this screen by typing / and then a search term, and hitting . to find the next match. To go a level deeper in the folder structure, hit return on a folder. To add a folder or file to your playlist, hit space. If you want more control over how it's added, hit a instead. There's also a slightly cleaner media library view that you can find by hitting 4. To start playback, hit tab again to return to the playlist screen and press return. There's a more advanced search interface available by typing 3—press return on a category, type your query, and hit y to see the results. You can find out more about ncmpcpp here. Hit F1 to see the help screen.

You can quit ncmpcpp by typing q. But remember: the music will keep playing. If you want to toggle play/pause without opening ncmpcpp, you can use mpc from the terminal:

mpc toggle

Sheesh. You're probably used to using the media keys on your keyboard to control audio playback. Those keys are a bit finicky, but we can whip up a nice subsitute with Alfred.

The mappings are:

• Toggle play/pause: ⌥] - /usr/local/bin/mpc toggle
• Skip to the next song: ⌥\ - /usr/local/bin/mpc next
• Restart the current song: ⌥[ - /usr/local/bin/mpc seek 0

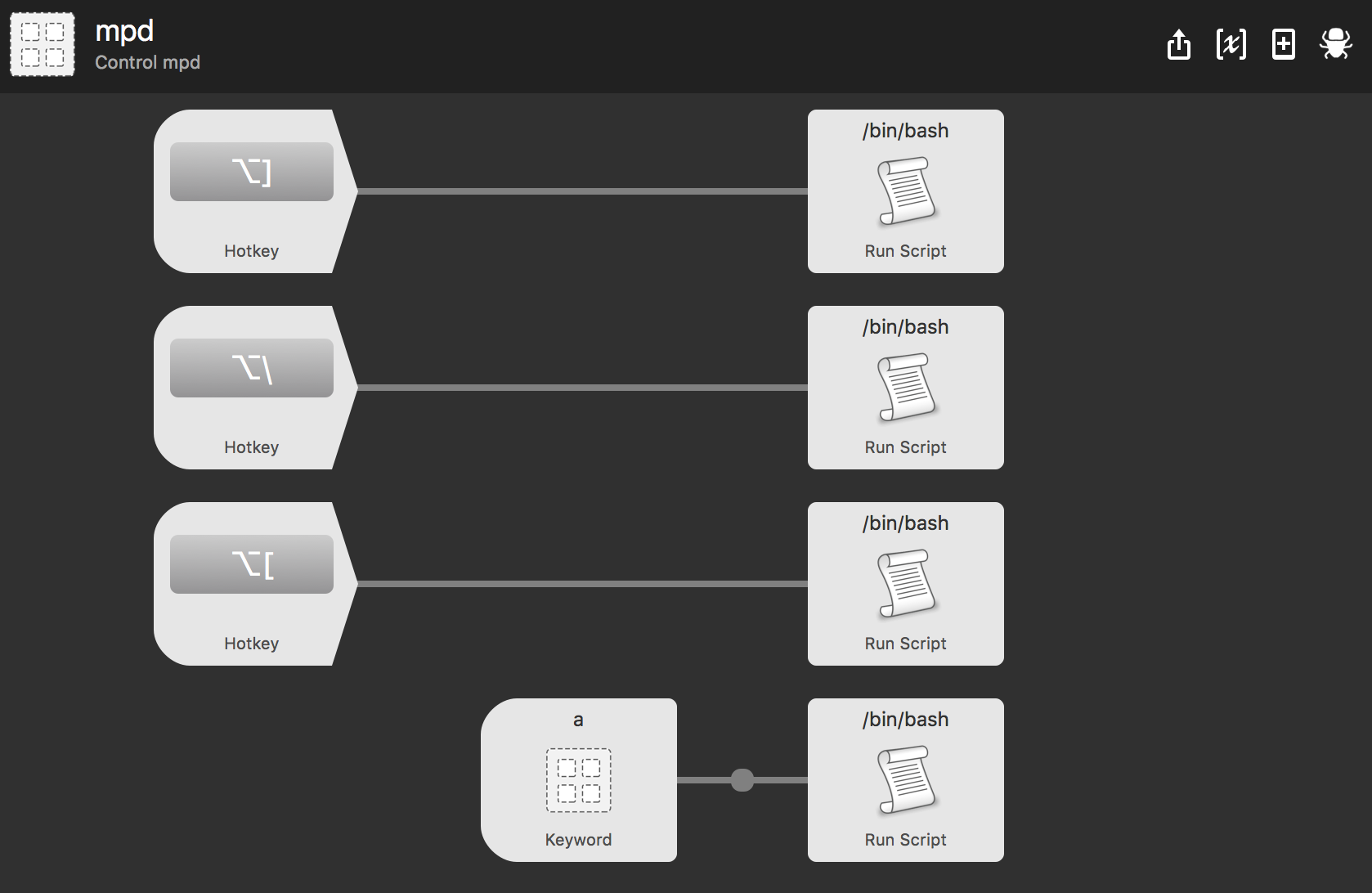

I like listening to whole albums, so I added another workflow that lets me type, for example, a 808s in Alfred to add the album or albums matching "808s" to my current playlist. Alfred and mpd on an ultralight beam:

You can download my Alfred workflow to control mpd.

Syncing with the iPhone

I've shed my dependence on iTunes using beets, mpd, ncmpcpp, and Alfred, but I still need to use it to sync my music to my iPhone. There's an easy way to manage this. First, make sure you remove iTunes's privilege to manage your music library for you. In iTunes, go to Advanced Preferences and uncheck "Keep Music folder organized" and "Copy files to iTunes Media when adding to library."

We can automatically create a playlist that contains all of our music every time we import new music into beets. Modify ~/.config/beets/config.yaml:

smartplaylist:
    playlist_dir: ~/.mpd/playlists
    playlists:
        - name: all.m3u
          query: ''                  # Matches all music in your library

Now, after you import something with beet import, open ~/.mpd/playlists and drag all.m3u into iTunes. iTunes is smart enough to only add the new files to your library. Then you can sync with your iPhone and go about your life mostly iTunes-free.

Bonus: Scrobbling to last.fm

If you're obsessive enough to install and learn all these new tools, you are probably a last.fm fanatic like me. It's easy to setup last.fm scrobbling with mpd. First install mpdscribble:

brew install mpdscribble

and run the command that homebrew gives you to start mpdscribble on login. Edit the last.fm section of /usr/local/etc/mpdscribble.conf with your username and password:

# The port that the MPD listens on and mpdscribble should try to
# connect to.  Defaults to $MPD_PORT or 6600.
#port = 6600

[last.fm]
url = http://post.audioscrobbler.com/
username = YOUR_LASTFM_USERNAME
password = YOUR_LASTFM_PASSWORD
# The file where mpdscribble should store its Last.fm journal in case
# you do not have a connection to the Last.fm server.
journal = /var/cache/mpdscribble/lastfm.journal

Mpdscribble will now scrobble everything that mpd plays.

Bonus: Ripping CDs (What's a CD?)

CDs are dumb. If you absolutely must, use abcde to rip CDs. It's great (well, as great as a tool can be for turning a dumb thing into a not dumb thing).

brew install abcde cdparanoia eyeD3

Here's the ~/.abcde.conf that I use for ripping CDs to mp3s. You can run it by inserting a CD and entering the command

abcde

to rip the CD in the drive. That is, if you even have a CD drive.

Bonus: Backup

I keep my ~/Music/beets folder synced between all of my computers using Resilio Sync (née BitTorrent Sync). You could also use something like Google Drive or Dropbox if you want to pay for those. The nice thing about Sync is that it keeps everything in sync between all of your computers without requiring cloud storage.

You could also use an open source solution here, like syncthing or writing some scripts around rsync or something. Resilio Sync is easy to setup and works great for my simple use case.

Wrapping up

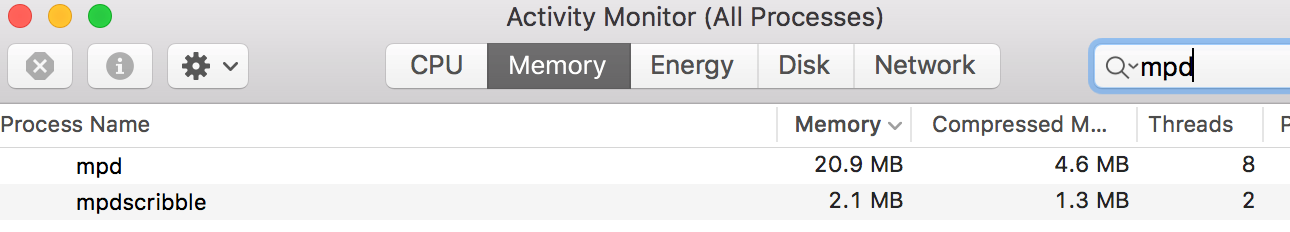

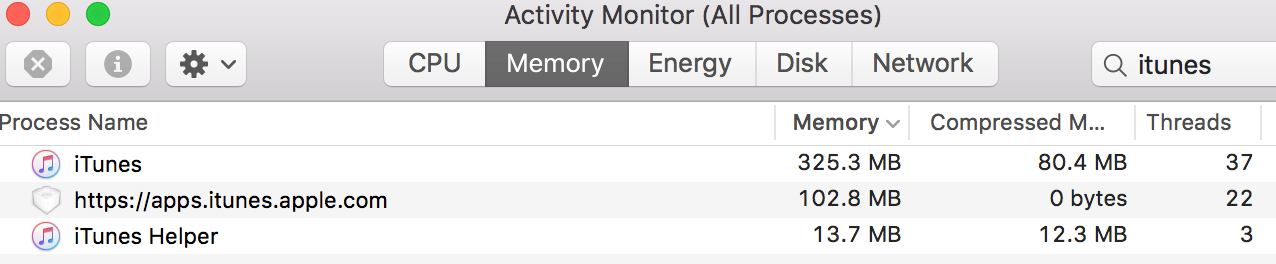

We did it! We don't need iTunes anymore except to sync to the phone, grumble grumble. It feels great, doesn't it? We went from this:

to this:

while doing nothing but playing a song.

In addition to the obvious benefits you get from using The Right Tool For The Job, each of these tools has oodles of options that you can tweak to perfect your music organizing and listening experience. For example, we barely used any of the functionality of beets, and look at all these plugins!

Enjoy!

speecheditor: an audio story editing tool

Today we've released our speecheditor, a web app for editing and adding musical scores to audio stories. Instead of editing speech using waveforms, the speecheditor allows you to edit audio with text, like a word processor. Likewise, it allows users to easily loop musical tracks and add musical underlays à la This American Life. The speecheditor is described in detail in our paper, "Content-based Tools for Editing Audio Stories."

The speecheditor is research code. To that extent, this release is a polished prototype – there are bound to be bugs that arise (please file those on the github issues page!) but we've had a lot of fun editing audio stories with this system and we believe it's a powerful paradigm for DAWs of the future. We're excited to have other creators try it out!

Browsers, Mechanical Turk, and external HITs

I had a lot of experiments running on Mechanical Turk this summer as ExternalHITs. In MTurk parlance, this means that the tasks were hosted on my research group's server and embedded in Mechanical Turk via an iframe.

I started posting tasks again recently, and my external HITs were no longer working. Chrome was blocking the content, because mturk is https and my external content was running on http. Thanks to this U Rochester site for steering me in the right direction.

TL;DR: If your external HITs mysteriously stop working on Mechanical Turk (or if it seems like many fewer people are doing your hits than before), blame it on updated browsers and their draconian new security settings, and start serving https content from your server.

A web-first research methodology

When I started grad school in the Fall of 2011, I didn't consider myself to be an excellent programmer or a hacker or anything like that. On the other hand, I did consider myself to be an exceptional googler and tinkerer; I could usually scrounge up a solution to my current programming problem without much difficulty.

My first research project in grad school involved a javascript-heavy experiment that we were going to deploy to Mechanical Turk. I had done my fair share of tinkering with client-side (HTML/CSS) and server-side (Rails) web development, but I had always avoided javascript. No, I don't know why.

Eager to show my collaborators that I was capable of writing code that worked and writing it quickly, I dove into javascript's prototypical deep end. My code, hideous as it was, worked fine and allowed for rapid iteration.

Just to expand on the aforementioned hideousness, we're talking a whole mess of global variables and inline HTML:

$('body').prepend('<span id="codespan"><strong>Enter your code: </strong><input style="display: inline" id="turkcode" type="text" name="turkcode"></input><button id="codebutton">Submit</button></span>');

Oh dear.

My intention isn't to call out how bad I was at javascript a year and half ago. I was inspired by the process. That project necessitated that I build a web app, but my projects since then have been more flexible. But all of my (and your, I'm guessing) research collaborators have a somewhat unbelievable number of devices that can access the web, so ideally, my research should live on the web instead of in some C++ or Java code that may not ever be compiled on anyone else's machine.

This idea of web-first research manifests itself it a number of ways:

• Whenever I'm building an interface, I will try to make it a web app as opposed to a native GUI.
  • Remote collaborators can see what I'm working on without downloading and compiling code, getting the proper libraries installed, debugging platform-specific issues, and so on.
  • Everyone wants scientists to release their code. Once published, web-based projects are easy to disseminate because they're already running in-browser.
• For each project, I maintain a private website to track progress, results, and ideas. If someone misses a meeting, they can just check the site to see what's going on.
• I like learning new programming languages and frameworks. The web is constantly evolving, so I have the opportunity to learn and extend tons of cool web-related technologies and tools. So far in grad school: web.py, flask, django, node.js, SQLAlchemy, dojo, jQuery, jQuery UI, underscore, coffeescript, docpad and many more. Being able to learn these tools while I'm doing my research is a highly-motivational mixture of work and play.
• Rapid iteration for the web is, well, rapid. This applies to high- level languages in general. Sure, algorithms are going to run a bit slower, but only invest the time in highly optimized implementations if your research depends on it.

Web-first research doesn't make sense for all areas of research, but I encourage other graduate students (HCI and otherwise) to think about these things as they're working on projects.

Site redesign

I'm working on an (admittedly simple) redesign of my site. I may change things significantly from this form because

1. I am indecisive, and
2. This is fun.

One obvious difference is that there is a section here for "posts." I'm not sure exactly what's going to become of this section. I might end up scrapping it in the future. But for now, it's here. I have a soft spot for blogging. When I first purchased this domain when I was in 7th grade, I wrote a blog that was horribly written and often banal, but my friends kept reading, so I kept writing.

As a graduate student, I probably have more interesting things to say now than I did back then. Probably.
